توضیحات

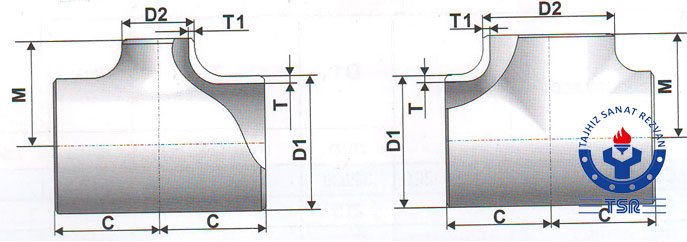

| SIZE (INCH) | D1 | T | D2 | T1 | C | M | m |
| mm | mm(sch) | mm | mm | mm | mm | kg | |
| 1/2″ X 1/2″ | 21.3 | 2.77 (STD /40) | 21.3 | 2.77 (STD /40) | 25 | 25 | 0.14 |
| 1/2″ X 1/2″ | 21.3 | 3.73 (XS/80) | 21.3 | 3.73 (XS/80) | 25 | 25 | 0.20 |
| 3/4″ X 1/2″ | 26.7 | 2.87 (STD/40) | 21.3 | 2.87 (STD/40) | 29 | 29 | 0.20 |
| 3/4″ X 1/2″ | 26.7 | 2.87 (STD/40) | 21.3 | 2.87 (STD/40) | 29 | 29 | 0.20 |
| 3/4″ X 3/4″ | 26.7 | 2.87 (STD/40) | 26.7 | 2.87 (STD/40) | 29 | 29 | 0.20 |
| 3/4″ X 3/4″ | 26.7 | 3.91 (XS/80) | 26.7 | 3.91 (XS/80) | 29 | 29 | 0.27 |
| 1″ x 1/2″ | 33.4 | 3.38 (STD/40) | 21.3 | 2.77 (STD /40) | 38 | 38 | 0.35 |
| 1″ x 1/2″ | 33.4 | 4.55 (XS/80) | 21.3 | 3.73 (XS/80) | 38 | 38 | 0.47 |
| 1″ x 3/4″ | 33.4 | 3.38 (STD/40) | 26.7 | 2.87 (STD/40) | 38 | 38 | 0.35 |
| 1″ x 3/4″ | 33.4 | 4.55 (XS/80) | 26.7 | 3.91 (XS/80) | 38 | 38 | 0.47 |
| 1″ x 1″ | 33.4 | 3.38 (STD/40) | 33.4 | 3.38 (STD/40) | 38 | 38 | 0.35 |
| 1″ x 1″ | 33.4 | 4.55 (XS/80) | 33.4 | 4.55 (XS/80) | 38 | 38 | 0.47 |
| 1″ x 1″ | 33.4 | 6.35 (160) | 33.4 | 6.35 (160) | 38 | 38 | 0.61 |
| 1 1/4″ X 1/2″ | 42.2 | 3.56 (STD/40) | 21.3 | 2.77 (STD /40) | 48 | 48 | 0.54 |
| 1 1/4″ X 1/2″ | 42.2 | 4.85 (XS/80) | 21.3 | 3.73 (XS/80) | 48 | 48 | 0.73 |
| 1 1/4″ X 3/4″ | 42.2 | 3.56 (STD/40) | 26.7 | 2.87 (STD/40) | 48 | 48 | 0.54 |
| 1 1/4″ X 3/4″ | 42.2 | 4.85 (XS/80) | 26.7 | 3.91 (XS/80) | 48 | 48 | 0.54 |
| 1 1/4″ X 1″ | 42.2 | 3.56 (STD/40) | 33.4 | 3.38 (STD/40) | 48 | 48 | 0.60 |
| 1 1/4″ X 1″ | 42.2 | 4.85 (XS/80) | 33.4 | 4.55 (XS/80) | 48 | 48 | 0.73 |
| 1 1/4″ X 1 1/4″ | 42.2 | 3.56 (STD/40) | 42.2 | 3.56 (STD/40) | 48 | 48 | 0.60 |
| 1 1/4″ X 1 1/4″ | 42.2 | 4.85 (XS/80) | 42.2 | 4.85 (XS/80) | 48 | 48 | 0.73 |
| 1 1/4″ X 1 1/4″ | 42.2 | 6.35 (160) | 42.2 | 6.35 (160) | 48 | 48 | 0.98 |
| 1 1/2″ X 1/2″ | 48.3 | 3.68 (STD/40) | 21.3 | 2.77 (STD /40) | 57 | 57 | 0.92 |
| 1 1/2″ X 1/2″ | 48.3 | 5.08 (XS/80) | 21.3 | 3.73 (XS/80) | 57 | 57 | 1.27 |
| 1 1/2″ X 3/4″ | 48.3 | 3.68 (STD/40) | 33.4 | 3.38 (STD/40) | 57 | 57 | 0.92 |
| 1 1/2″ X 3/4″ | 48.3 | 5.08 (XS/80) | 26.7 | 3.91 (XS/80) | 57 | 57 | 1.27 |
| 1 1/2″ X 1″ | 48.3 | 3.68 (STD/40) | 33.4 | 3.38 (STD/40) | 57 | 57 | 0.92 |
| 1 1/2″ X 1″ | 48.3 | 5.08 (XS/80) | 33.4 | 4.55 (XS/80) | 57 | 57 | 1.27 |
| 1 1/2″ X 1 1/2″ | 48.3 | 3.68 (STD/40) | 48.3 | 3.68 (STD/40) | 57 | 57 | 0.92 |
| 1 1/2″ X 1 1/2″ | 48.3 | 5.08 (XS/80) | 48.3 | 5.08 (XS/80) | 57 | 57 | 1.27 |
| 1 1/2″ X 1 1/2″ | 48.3 | 7.14 (160) | 48.3 | 7.14 (160) | 57 | 57 | 1.79 |
| 2″ X 3/4″ | 60.3 | 3.91 (STD/40) | 26.7 | 2.87 (STD/40) | 64 | 44 | 4.49 |
| 2″ X 3/4″ | 60.3 | 5.54 (XS/80) | 26.7 | 3.91 (XS/80) | 64 | 44 | 2.15 |
| 2″ X 1″ | 60.3 | 3.91 (STD/40) | 33.4 | 3.38 (STD/40) | 64 | 51 | 1.49 |
| 2″ X 1″ | 60.3 | 5.54 (XS/80) | 33.4 | 4.55 (XS/80) | 64 | 51 | 2.15 |
| 2″ X 1 1/4″ | 60.3 | 3.91 (STD/40) | 42.2 | 3.56 (STD/40) | 64 | 57 | 1.49 |
| 2″ X 1 1/4″ | 60.3 | 5.54(XS/80) | 42.2 | 4.85 (XS/80) | 64 | 57 | 2.15 |
| 2″ X 2″ | 60.3 | 3.91 (STD/40) | 60.3 | 3.91 (STD/40) | 64 | 64 | 1.49 |
| 2″ X 2″ | 60.3 | 5.54 (XS/80) | 60.3 | 5.54 (XS/80) | 64 | 64 | 2.15 |
| 2″ X 2″ | 60.3 | 8.74 (160) | 60.3 | 8.74 (160) | 64 | 64 | 3.18 |
| 2″ X 2″ | 60.3 | 11.07 (XXS) | 60.3 | 11.07 (XXS) | 64 | 64 | 4.00 |
| 2 1/2″ X 1″ | 73 | 5.16 (STD/40) | 33.4 | 3.38 (STD/40) | 76 | 57 | 2.68 |
| 2 1/2″ X 1″ | 73 | 7.01 (XS/80) | 33.4 | 4.55 (XS/80) | 76 | 57 | 2.95 |
| 2 1/2″ X 1 1/4″ | 73 | 5.16 (STD/40) | 42.2 | 3.56 (STD/40) | 76 | 64 | 2.68 |
| 2 1/2″ X 1 1/4″ | 73 | 7.01 (XS/80) | 42.2 | 4.85 (XS/80) | 76 | 64 | 2.95 |
| 2 1/2″ X 1 1/2″ | 73 | 5.16 (STD/40) | 48.3 | 3.68 (STD/40) | 76 | 67 | 2.68 |
| 2 1/2″ X 1 1/2″ | 73 | 7.01 (XS/80) | 48.3 | 5.08 (XS/80) | 76 | 67 | 2.95 |
| 2 1/2″ X 2″ | 73 | 5.16 (STD/40) | 60.3 | 3.91 (STD/40) | 76 | 70 | 2.68 |
| 2 1/2″ X 2″ | 73 | 7.01 (XS/80) | 60.3 | 5.54 (XS/80) | 76 | 70 | 2.95 |
| 2 1/2″ X 2 1/2″ | 73 | 5.16 (STD/40) | 73 | 5.16 (STD/40) | 76 | 76 | 2.68 |
| 2 1/2″ X 2 1/2″ | 73 | 7.01 (XS/80) | 73 | 7.01 (XS/80) | 76 | 76 | 2.95 |
| 2 1/2″ X 2 1/2″ | 73 | 9.53 (160) | 73 | 9.53 (160) | 76 | 76 | 3.58 |
| 3″ X 1″ | 88.9 | 5.49 (STD/40) | 33.4 | 3.38 (STD/40) | 86 | 70 | 3.75 |
| 3″ X 1″ | 88.9 | 5.49 (STD/40) | 33.4 | 4.55 (XS/80) | 86 | 70 | 3.75 |
| 3″ X 1″ | 88.9 | 7.62 (XS/80) | 33.4 | 4.55 (XS/80) | 86 | 70 | 4.29 |
| 3″ X 1 1/4″ | 88.9 | 5.49 (STD/40) | 42.2 | 3.56 (STD/40) | 86 | 70 | 3.75 |
| 3″ X 1 1/4″ | 88.9 | 7.62 (XS/80) | 42.2 | 4.85 (XS/80) | 86 | 70 | 4.29 |
| 3″ X 1 1/2″ | 88.9 | 5.49 (STD/40) | 48.3 | 3.68 (STD/40) | 86 | 73 | 3.75 |
| 3″ X 1 1/2″ | 88.9 | 5.49 (STD/40) | 48.3 | 4.85 (XS/80) | 86 | 70 | 4.29 |
| 3″ X 2″ | 88.9 | 5.49 (STD/40) | 60.3 | 3.91 (STD/40) | 86 | 76 | 3.75 |
| 3″ X 2″ | 88.9 | 7.62 (XS/80) | 60.3 | 5.54 (XS/80) | 86 | 76 | 4.29 |
| 3″ X 2 1/2″ | 88.9 | 5.49 (STD/40) | 73 | 5.16 (STD/40) | 86 | 86 | 3.75 |
| 3″ X 2 1/2″ | 88.9 | 7.62 (XS/80) | 73 | 7.01 (XS/80) | 86 | 86 | 4.29 |
| 3″ X 3″ | 88.9 | 5.49 (STD/40) | 88.9 | 5.49 (STD/40) | 86 | 86 | 3.75 |
| 3″ X 3″ | 88.9 | 7.62 (XS/80) | 88.9 | 7.62 (XS/80) | 86 | 86 | 4.29 |
| 3″ X 3″ | 88.9 | 11.13 (160) | 88.9 | 11.13 (160) | 86 | 86 | 4.29 |
| 3″ X 3″ | 88.9 | 15.24 (XXS) | 88.9 | 15.24 (XXS) | 86 | 86 | 8.12 |
| 4″ X 1″ | 114.3 | 6.02 (STD/40) | 33.4 | 3.38 (STD/40) | 105 | 86 | 6.50 |
| 4″ X 1″ | 114.3 | 8.56 (XS/80) | 33.4 | 4.55 (XS/80) | 105 | 86 | 7.65 |
| 4″ X 1 1/4″ | 114.3 | 6.02 (STD/40) | 42.2 | 3.56 (STD/40) | 105 | 86 | 6.50 |
| 4″ X 1 1/4″ | 114.3 | 8.56 (XS/80) | 42.2 | 4.85 (XS/80) | 105 | 86 | 7.65 |
| 4″ X 1 1/2″ | 114.3 | 6.02 (STD/40) | 48.3 | 3.68 (STD/40) | 105 | 86 | 6.50 |
| 4″ X 1 1/2″ | 114.3 | 8.56 (XS/80) | 48.3 | 5.08 (XS/80) | 105 | 89 | 7.65 |
| 4″ X 2″ | 114.3 | 6.02 (STD/40) | 60.3 | 3.91 (STD/40) | 105 | 89 | 6.50 |
| 4″ X 2″ | 114.3 | 8.56 (XS/80) | 60.3 | 5.54 (XS/80) | 105 | 89 | 7.65 |
| 4″ X 2″ | 114.3 | 11.3 (120) | 60.3 | 8.74 (160) | 105 | 89 | 9.00 |
| 4″ X 2 1/2″ | 114.3 | 6.02 (STD/40) | 73 | 5.16 (STD/40) | 105 | 95 | 6.50 |
| 4″ X 2 1/2″ | 114.3 | 8.56 (XS/80) | 73 | 7.01 (XS/80) | 105 | 95 | 7.65 |
| 4″ X 2 1/2″ | 114.3 | 11.3 (120) | 73 | 9.53 (160) | 105 | 95 | 9.00 |
| 4″ X 3″ | 114.3 | 6.02 (STD/40) | 88.9 | 5.49 (STD/40) | 105 | 98 | 6.50 |
| 4″ X 3″ | 114.3 | 8.56 (XS/80) | 88.9 | 7.62 (XS/80) | 105 | 98 | 7.65 |
| 4″ X 3″ | 114.3 | 11.13 (120) | 88.9 | 7.62 (XS/80) | 105 | 105 | 9.00 |
| 4″ X 4″ | 114.3 | 13.49 (160) | 114.3 | 13.49 (160) | 105 | 105 | 6.50 |
| 4″ X 4″ | 114.3 | 17.12 (XXS) | 114.3 | 17.12 (XXS) | 105 | 105 | 7.65 |
| 4″ X 4″ | 114.3 | 11.13 (120) | 114.3 | 11.13 (120) | 105 | 105 | 9.00 |
| 4″ X 4″ | 114.3 | 13.49 (160) | 114.3 | 13.49 (160) | 105 | 105 | 11.80 |
| 4″ X 4″ | 114.3 | 17.12 (XXS) | 114.3 | 17.12 (XXS) | 105 | 105 | 15.00 |
| 5″ X 1 1/2″ | 141.3 | 6.55 (STD/40) | 48.3 | 3.68 (STD/40) | 124 | 105 | 10.00 |
| 5″ X 1 1/2″ | 141.3 | 9.53 (XS/80) | 48.3 | 5.08 (XS/80) | 124 | 105 | 13.50 |
| 5″ X 2″ | 141.3 | 6.55 (STD/40) | 60.3 | 3.91 (STD/40) | 124 | 105 | 10.00 |
| 5″ X 2″ | 141.3 | 9.53 (XS/80) | 60.3 | 5.54 (XS/80) | 124 | 105 | 13.50 |
| 5″ X 2″ | 141.3 | 12.7 (120) | 60.3 | 11.07 (XXS) | 124 | 105 | 17.50 |
| 5″ X 2 1/2″ | 141.3 | 6.55 (STD/40) | 73 | 5.16 (STD/40) | 124 | 108 | 10.00 |
| 5″ X 2 1/2″ | 141.3 | 9.53 (XS/80) | 73 | 7.01 (XS/80) | 124 | 108 | 13.50 |
| 5″ X 2 1/2″ | 141.3 | 12.7 (120) | 73 | 11.07 (160) | 124 | 108 | 17.50 |
| 5″ X 3″ | 141.3 | 6.55 (STD/40) | 88.9 | 5.49 (STD/40) | 124 | 111 | 10.00 |
| 5″ X 3″ | 141.3 | 9.53 (XS/80) | 88.9 | 7.62 (XS/80) | 124 | 111 | 13.50 |
| 5″ X 3″ | 141.3 | 12.7 (120) | 88.9 | 11.13 (160) | 124 | 111 | 17.50 |
| 5″ X 3″ | 141.3 | 15.88 (160) | 88.9 | 15.24 (XXS) | 124 | 111 | 23.00 |
| 5″ X 4″ | 141.3 | 6.55 (STD/40) | 114.3 | 6.029 (STD/40) | 124 | 117 | 10.00 |
| 5″ X 4″ | 141.3 | 9.53 (XS/80) | 114.3 | 8.56 (XS/80) | 124 | 117 | 13.50 |
| 5″ X 4″ | 141.3 | 12.7 (120) | 114.3 | 12.7 (120) | 124 | 117 | 17.50 |
| 5″ X 4″ | 141.3 | 15.88 (160) | 114.3 | 13.49 (160) | 124 | 117 | 23.00 |
| 5″ X 5″ | 141.3 | 6.55 (STD/40) | 141.3 | 6.55 (STD/40) | 124 | 124 | 10.00 |
| 5″ X 5″ | 141.3 | 9.53 (XS/80) | 141.3 | 9.53 (XS/80) | 124 | 124 | 13.50 |
| 5″ X 5″ | 141.3 | 12.7 (120) | 141.3 | 12.7 (120) | 124 | 124 | 17.50 |
| 5″ X 5″ | 141.3 | 15.88 (160) | 141.3 | 15.88 (160) | 124 | 124 | 23.00 |
| 6″ X 2″ | 168.3 | 7.11 (STD/40) | 60.3 | 3.91 (STD/40) | 143 | 121 | 13.50 |
| 6″ X 2″ | 168.3 | 10.97 (XS/80) | 60.3 | 5.54 (XS/80) | 143 | 121 | 19.30 |
| 6″ X 2 1/2″ | 168.3 | 7.11 (STD/40) | 73 | 5.16 (STD/40) | 143 | 121 | 13.50 |
| 6″ X 2 1/2″ | 168.3 | 10.97 (XS/80) | 73 | 7.01 (XS/80) | 143 | 121 | 19.30 |
| 6″ X 3″ | 168.3 | 7.11 (STD/40) | 88.9 | 5.49 (STD/40) | 143 | 124 | 13.50 |
| 6″ X 3″ | 168.3 | 10.97 (XS/80) | 88.9 | 7.62 (XS/80) | 143 | 124 | 19.30 |
| 6″ X 3″ | 168.3 | 14.27 (120) | 88.9 | 11.13 (160) | 143 | 124 | 24.00 |
| 6″ X 4″ | 168.3 | 7.11 (STD/40) | 114.3 | 6.02 (STD/40) | 143 | 130 | 13.50 |
| 6″ X 4″ | 168.3 | 10.97 (XS/80) | 114.3 | 8.56 (XS/80) | 143 | 130 | 19.30 |
| 6″ X 4″ | 168.3 | 14.27 (120) | 114.3 | 11.13 (120) | 143 | 130 | 24.00 |
| 6″ X 4″ | 168.3 | 18.26 (160) | 114.3 | 13.49 (160) | 143 | 130 | 31.92 |
| 6″ X 5″ | 168.3 | 7.11 (STD/40) | 141.3 | 6.55 (STD/40) | 143 | 137 | 13.50 |
| 6″ X 5″ | 168.3 | 10.97 (XS/80) | 141.3 | 9.53 (XS/80) | 143 | 137 | 19.30 |
| 6″ X 5″ | 168.3 | 14.27 (120) | 141.3 | 120.7 (120) | 143 | 137 | 24.00 |
| 6″ X 5″ | 168.3 | 18.26 (160) | 141.3 | 15.88 (160) | 143 | 137 | 31.92 |
| 6″ X 6″ | 168.3 | 7.11 (STD/40) | 168.3 | 7.11 (STD/40) | 143 | 143 | 13.50 |
| 6″ X 6″ | 168.3 | 10.97 (XS/80) | 168.3 | 10.97 (XS/80) | 143 | 143 | 19.30 |
| 6″ X 6″ | 168.3 | 14.27 (120) | 168.3 | 14.27 (120) | 143 | 143 | 24.00 |
| 6″ X 6″ | 168.3 | 18.26 (160) | 168.3 | 18.26 (160) | 143 | 143 | 31.92 |
| 6″ X 6″ | 168.3 | 21.95 (XXS) | 168.3 | 21.95 (XXS) | 143 | 143 | 35.60 |
| 8″ X 2″ | 219.1 | 6.35 (20) | 60.3 | 3.91 (STD/40) | 178 | 152 | 23.00 |
| 8″ X 2″ | 219.1 | 7.04 (30) | 60.3 | 5.54 (XS/80) | 178 | 152 | 24.00 |
| 8″ X 2″ | 219.1 | 8.18 (STD/40) | 60.3 | 3.91 (STD/40) | 178 | 152 | 24.50 |
| 8″ X 2″ | 219.1 | 10.31 (60) | 60.3 | 8.74 (160) | 178 | 152 | 34.70 |
| 8″ X 2″ | 219.1 | 12.7 (XS/80) | 60.3 | 11.07 (XXS) | 178 | 152 | 34.70 |
| 8″ X 3″ | 219.1 | 6.35 (20) | 88.9 | 5.49 (STD/40) | 178 | 152 | 23.00 |
| 8″ X 3″ | 219.1 | 7.04 (30) | 88.9 | 5.49 (STD/40) | 178 | 152 | 24.00 |
| 8″ X 3″ | 219.1 | 8.18 (STD/40) | 88.9 | 5.49 (STD/40) | 178 | 152 | 24.50 |
| 8″ X 3″ | 219.1 | 10.31 (60) | 88.9 | 7.62 (XS/80) | 178 | 152 | 31.80 |
| 8″ X 3″ | 219.1 | 12.7 (XS/80) | 88.9 | 7.62 (XS/80) | 178 | 152 | 34.70 |
| 8″ X 4″ | 219.1 | 6.35 (20) | 114.3 | 6.02 (STD/40) | 178 | 156 | 23.00 |
| 8″ X 4″ | 219.1 | 7.04 (30) | 114.3 | 6.02 (STD/40) | 178 | 156 | 24.00 |
| 8″ X 4″ | 219.1 | 8.18 (STD/40) | 114.3 | 6.02 (STD/40) | 178 | 156 | 24.50 |
| 8″ X 4″ | 219.1 | 12.7 (XS/80) | 114.3 | 8.56 (XS/80) | 178 | 156 | 34.70 |
| 8″ X 4″ | 219.1 | 15.09 (100) | 114.3 | 11.13 (120) | 178 | 156 | 43.50 |
| 8″ X 5″ | 219.1 | 7.04 (30) | 141.3 | 6.55 (STD/40) | 178 | 162 | 24.00 |
| 8″ X 5″ | 219.1 | 8.18 (STD/40) | 141.3 | 6.55 (STD/40) | 178 | 162 | 24.50 |
| 8″ X 5″ | 219.1 | 10.31 (60) | 141.3 | 9.53 (XS/80) | 178 | 162 | 31.80 |
| 8″ X 5″ | 219.1 | 12.7 (XS/80) | 141.3 | 9.53 (XS/80) | 178 | 162 | 34.70 |
| 8″ X 5″ | 219.1 | 15.09 (100) | 141.3 | 12.7 (120) | 178 | 162 | 43.50 |
| 8″ X 5″ | 219.1 | 18.26 (120) | 141.3 | 15.88 (160) | 178 | 162 | 49.50 |
| 8″ X 6″ | 219.1 | 8.18 (STD/40) | 168.3 | 7.11 (STD/40) | 178 | 168 | 24.50 |
| 8″ X 6″ | 219.1 | 12.7 (XS/80) | 168.3 | 10.97(XS/80) | 178 | 168 | 34.70 |
| 8″ X 6″ | 219.1 | 15.09(100) | 168.3 | 14.27(120) | 178 | 168 | 43.50 |
| 8″ X 6″ | 219.1 | 18.26(120) | 168.3 | 18.26(160) | 178 | 168 | 49.50 |
| 8″ X 8″ | 219.1 | 6.35(20) | 219.1 | 6.35(20) | 178 | 178 | 23.00 |
| 8″ X 8″ | 219.1 | 7.04(30) | 219.1 | 7.04(30) | 178 | 178 | 24.00 |
| 8″ X 8″ | 219.1 | 8.18(STD/40) | 219.1 | 8.18(STD/40) | 178 | 178 | 24.50 |
| 8″ X 8″ | 219.1 | 10.31(60) | 219.1 | 10.31(60) | 178 | 178 | 31.80 |
| 8″ X 8″ | 219.1 | 12.7(XS/80) | 219.1 | 12.7(XS/80) | 178 | 178 | 34.70 |
| 8″ X 8″ | 219.1 | 15.09(100) | 219.1 | 15.09(100) | 178 | 178 | 43.50 |
| 8″ X 8″ | 219.1 | 18.26(120) | 219.1 | 18.26(120) | 178 | 178 | 49.50 |
| 8″ X 8″ | 219.1 | 20.62(140) | 219.1 | 20.62(140) | 178 | 178 | 54.00 |
| 8″ X 8″ | 219.1 | 23.01(160) | 219.1 | 23.01(160) | 178 | 178 | 58.00 |
| 10″ X 3″ | 273 | 6.35 (20) | 88.9 | 5.49 (STD/40) | 216 | 184 | 34.70 |
| 10″ X 3″ | 273 | 7.8 (30) | 88.9 | 7.62 (XS/80) | 216 | 184 | 36.70 |
| 10″ X 3″ | 273 | 9.27 (STD/40) | 88.9 | 5.49 (STD/40) | 216 | 184 | 34.70 |
| 10″ X 3″ | 273 | 12.7 (XS/80) | 88.9 | 7.62 (XS/80) | 216 | 184 | 58.40 |
| 10″ X 3″ | 273 | 15.09 (80) | 88.9 | 11.13 (160) | 216 | 184 | 59.70 |
| 10″ X 4″ | 273 | 6.35 (20) | 114.3 | 6.02 (STD/40) | 216 | 184 | 34.70 |
| 10″ X 4″ | 273 | 7.8 (30) | 114.3 | 6.02 (STD/40) | 216 | 184 | 36.70 |
| 10″ X 4″ | 273 | 9.27 (STD/40) | 114.3 | 6.02 (STD/40) | 216 | 184 | 41.30 |
| 10″ X 4″ | 273 | 12.7 (XS/80) | 114.3 | 8.56 (XS/80) | 216 | 184 | 58.40 |
| 10″ X 4″ | 273 | 15.09 (80) | 114.3 | 13.49 (160) | 216 | 184 | 67.50 |
| 10″ X 4″ | 273 | 18.26 (100) | 114.3 | 17.12 (XXS) | 216 | 184 | 74.00 |
| 10″ X 5″ | 273 | 7.8 (30) | 141.3 | 6.55 (STD/40) | 216 | 191 | 36.70 |
| 10″ X 5″ | 273 | 9.27 (STD/40) | 141.3 | 6.55 (STD/40) | 216 | 191 | 41.30 |
| 10″ X 5″ | 273 | 12.7 (XS/60) | 141.3 | 9.53 (XS/80) | 216 | 191 | 58.40 |
| 10″ X 5″ | 273 | 15.09 (80) | 141.3 | 12.7 (120) | 216 | 191 | 65.80 |
| 10″ X 5″ | 273 | 18.26 (100) | 141.3 | 15.88 (160) | 216 | 191 | 73.50 |
| 10″ X 6″ | 273 | 7.8 (30) | 168.3 | 7.11 (STD/40) | 216 | 194 | 36.70 |
| 10″ X 6″ | 273 | 9.27 (sTD/40) | 168.3 | 7.11 (STD/40) | 216 | 194 | 41.30 |
| 10″ X 6″ | 273 | 12.7 (XS/60) | 168.3 | 10.97 (XS/80) | 216 | 194 | 58.40 |
| 10″ X 6″ | 273 | 15.09 (80) | 168.3 | 14.27 (120) | 216 | 194 | 67.50 |
| 10″ X 6″ | 273 | 18.26 (100) | 168.3 | 18.26 (160) | 216 | 194 | 74.00 |
| 10″ X 6″ | 273 | 21.44 (120) | 168.3 | 18.26 (160) | 216 | 194 | 88.50 |
| 10″ X 8″ | 273 | 6.35 (20) | 219.1 | 6.35 (20) | 216 | 203 | 34.70 |
| 10″ X 8″ | 273 | 7.8 (30) | 219.1 | 7.8 (30) | 216 | 203 | 36.70 |
| 10″ X 8″ | 273 | 9.27 (STD/40) | 219.1 | 9.27 (STD/40) | 216 | 203 | 41.30 |
| 10″ X 8″ | 273 | 12.7 (XS/60) | 219.1 | 12.7 (XS/80) | 216 | 203 | 58.40 |
| 10″ X 8″ | 273 | 15.09 (80) | 219.1 | 12.7 (XS/80) | 216 | 203 | 65.80 |
| 10″ X 8″ | 273 | 18.26 (100) | 219.1 | 15.09 (100) | 216 | 203 | 73.50 |
| 10″ X 8″ | 273 | 21.44 (120) | 219.1 | 18.26 (120) | 216 | 203 | 88.50 |
| 10″ X 8″ | 273 | 25.4 (XXS/140) | 219.1 | 22.23 (XXS) | 216 | 203 | 95.00 |
| 10″ X 8″ | 273 | 28.58 (160) | 219.1 | 23.01 (160) | 216 | 203 | 113.00 |
| 10″ X 10″ | 273 | 6.35 (20) | 273 | 6.35 (20) | 216 | 216 | 34.70 |
| 10″ X 10″ | 273 | 7.8 (30) | 273 | 7.8 (30) | 216 | 216 | 36.70 |
| 10″ X 10″ | 273 | 9.27 (STD/40) | 273 | 9.27 (STD/40) | 216 | 216 | 41.30 |
| 10″ X 10″ | 273 | 12.7 (XS/60) | 273 | 12.7 (XS/60) | 216 | 216 | 58.40 |
| 10″ X 10″ | 273 | 15.09 (80) | 273 | 15.09 (80) | 216 | 216 | 67.50 |
| 10″ X 10″ | 273 | 18.26 (100) | 273 | 18.26 (100) | 216 | 216 | 74.00 |
| 10″ X 10″ | 273 | 21.44 (120) | 273 | 21.44 (120) | 216 | 216 | 93.00 |
| 10″ X 10″ | 273 | 25.4 (XXS/140) | 273 | 25.4 (XXS/140) | 216 | 216 | 98.50 |
| 10″ X 10″ | 273 | 28.58 (160) | 273 | 28.58 (160) | 216 | 216 | 129.30 |
| 12″ X 4″ | 323.8 | 6.35 (20) | 114.3 | 6.02 (STD/40) | 254 | 216 | 43.40 |
| 12″ X 4″ | 323.8 | 8.38 (30) | 114.3 | 6.02 (STD/40) | 254 | 216 | 56.60 |
| 12″ X 4″ | 323.8 | 9.53 (STD) | 114.3 | 6.02 (STD/40) | 254 | 216 | 65.00 |
| 12″ X 4″ | 323.8 | 10.31 (40) | 114.3 | 8.56 (XS/80) | 254 | 216 | 70.50 |
| 12″ X 4″ | 323.8 | 12.7 (XS) | 114.3 | 8.56 (XS/80) | 254 | 216 | 74.80 |
| 12″ X 4″ | 323.8 | 14.27 (60) | 114.3 | 13.49 (160) | 254 | 216 | 95.00 |
| 12″ X 4″ | 323.8 | 17.48 (80) | 114.3 | 13.49 (160) | 254 | 216 | 106.20 |
| 12″ X 5″ | 323.8 | 8.38 (30) | 141.3 | 6.55 (STD/40) | 254 | 216 | 56.60 |
| 12″ X 5″ | 323.8 | 9.53 (STD) | 141.3 | 6.55 (STD/40) | 254 | 216 | 65.00 |
| 12″ X 5″ | 323.8 | 10.31 (40) | 141.3 | 9.53 (XS/80) | 254 | 216 | 70.50 |
| 12″ X 5″ | 323.8 | 12.7 (XS) | 141.3 | 9.53 (XS/80) | 254 | 216 | 74.80 |
| 12″ X 5″ | 323.8 | 14.27 (60) | 141.3 | 12.7 (120) | 254 | 216 | 95.00 |
| 12″ X 5″ | 323.8 | 17.48 (80) | 141.3 | 15.88 (160) | 254 | 216 | 106.20 |
| 12″ X 6″ | 323.8 | 8.38 (30) | 168.3 | 7.11 (STD/40) | 254 | 219 | 56.60 |
| 12″ X 6″ | 323.8 | 9.53 (STD) | 168.3 | 7.11 (STD/40) | 254 | 219 | 65.00 |
| 12″ X 6″ | 323.8 | 10.31 (40) | 168.3 | 7.11 (STD/40) | 254 | 219 | 70.50 |
| 12″ X 6″ | 323.8 | 12.7 (XS) | 168.3 | 10.97 (XS/80) | 254 | 219 | 74.80 |
| 12″ X 6″ | 323.8 | 14.27 (60) | 168.3 | 14.27 (120) | 254 | 219 | 95.00 |
| 12″ X 6″ | 323.8 | 17.48 (80) | 168.3 | 14.27 (120) | 254 | 219 | 106.20 |
| 12″ X 6″ | 323.8 | 21.44 (100) | 168.3 | 18.26 (160) | 254 | 219 | 124.90 |
| 12″ X 8″ | 323.8 | 6.35 (20) | 219.1 | 6.35 (20) | 254 | 229 | 43.40 |
| 12″ X 8″ | 323.8 | 8.38 (30) | 219.1 | 7.04 (30) | 254 | 229 | 56.60 |
| 12″ X 8″ | 323.8 | 9.53 (STD) | 219.1 | 8.18 (STD/40) | 254 | 229 | 65.00 |
| 12″ X 8″ | 323.8 | 10.31 (40) | 219.1 | 8.18 (STD/40) | 254 | 229 | 70.50 |
| 12″ X 8″ | 323.8 | 12.7 (XS) | 219.1 | 12.7 (XS/80) | 254 | 229 | 78.00 |
| 12″ X 8″ | 323.8 | 14.27 (60) | 219.1 | 10.31 (60) | 254 | 229 | 77.50 |
| 12″ X 8″ | 323.8 | 17.48 (80) | 219.1 | 15.9 (100) | 254 | 229 | 106.20 |
| 12″ X 8″ | 323.8 | 21.44 (100) | 219.1 | 20.62 (140) | 254 | 229 | 136.20 |
| 12″ X 8″ | 323.8 | 25.4 (XXS/120) | 219.1 | 23.01 (160) | 254 | 229 | 150.00 |
| 12″ X 10″ | 323.8 | 6.35 (20) | 273 | 6.35 (20) | 254 | 241 | 43.40 |
| 12″ X 10″ | 323.8 | 8.38 (30) | 273 | 7.08 (30) | 254 | 241 | 56.60 |
| 12″ X 10″ | 323.8 | 9.53 (STD) | 273 | 9.27 (STD/40) | 254 | 241 | 65.00 |
| 12″ X 10″ | 323.8 | 10.31 (40) | 273 | 9.27 (STD/40) | 254 | 241 | 70.50 |
| 12″ X 10″ | 323.8 | 12.7 (XS) | 273 | 12.7 (XS/60) | 254 | 241 | 78.00 |
| 12″ X 10″ | 323.8 | 14.27 (60) | 273 | 12.7 (XS/60) | 254 | 241 | 95.00 |
| 12″ X 10″ | 323.8 | 17.48 (80) | 273 | 15.9 (80) | 254 | 241 | 106.20 |
| 12″ X 10″ | 323.8 | 21.44 (100) | 273 | 18.26 (100) | 254 | 241 | 124.90 |
| 12″ X 10″ | 323.8 | 25.4 (XXS/120) | 273 | 21.44 (120) | 254 | 241 | 140.90 |
| 12″ X 10″ | 323.8 | 28.58 (140) | 273 | 25.4 (XXS/140) | 254 | 241 | 158.00 |
| 12″ X 10″ | 323.8 | 33.32 (160) | 273 | 28.58 (160) | 254 | 241 | 163.50 |
| 12″ X 12″ | 323.8 | 6.35 (20) | 323.8 | 6.35 (20) | 254 | 254 | 43.40 |
| 12″ X 12″ | 323.8 | 8.38 (30) | 323.8 | 8.38 (30) | 254 | 254 | 56.60 |
| 12″ X 12″ | 323.8 | 9.53 (STD) | 323.8 | 9.53 (STD) | 254 | 254 | 65.00 |
| 12″ X 12″ | 323.8 | 10.31(40) | 323.8 | 10.31 (40) | 254 | 254 | 70.50 |
| 12″ X 12″ | 323.8 | 12.7 (XS) | 323.8 | 12.7 (XS) | 254 | 254 | 78.00 |
| 12″ X 12″ | 323.8 | 14.27 (60) | 323.8 | 14.27 (60) | 254 | 254 | 95.00 |
| 12″ X 12″ | 323.8 | 17.48 (80) | 323.8 | 17.48 (80) | 254 | 254 | 115.00 |
| 12″ X 12″ | 323.8 | 21.44 (100) | 323.8 | 21.44 (100) | 254 | 254 | 136.20 |
| 12″ X 12″ | 323.8 | 25.4 (XXS/120) | 323.8 | 25.4 (XXS/120) | 254 | 254 | 150.00 |
| 12″ X 12″ | 323.8 | 28.58 (140) | 323.8 | 28.58 (140) | 254 | 254 | 176.50 |
| 12″ X 12″ | 323.8 | 33.32 (160) | 323.8 | 33.32 (160) | 254 | 254 | 205.57 |
| 14″ X 5″ | 355.6 | 7.92 (20) | 141.3 | 6.55 (STD/40) | 279 | 238 | 80.60 |
| 14″ X 5″ | 355.6 | 9.53 (STD/30) | 141.3 | 6.55 (STD/40) | 279 | 238 | 82.80 |
| 14″ X 5″ | 355.6 | 11.13 (40) | 141.3 | 9.53 (XS/80) | 279 | 238 | 100.00 |
| 14″ X 5″ | 355.6 | 12.7 (XS) | 141.3 | 9.53 (XS/80) | 279 | 238 | 103.00 |
| 14″ X 5″ | 355.6 | 15.09 (60) | 141.3 | 12.7 (120) | 279 | 238 | 127.10 |
| 14″ X 5″ | 355.6 | 19.05 (80) | 141.3 | 15.88 (160) | 279 | 238 | 160.00 |
| 14″ X 6″ | 355.6 | 7.92 (20) | 168.3 | 7.11 (STD/40) | 279 | 238 | 80.60 |
| 14″ X 6″ | 355.6 | 9.53 (STD/30) | 168.3 | 7.11 (STD/40) | 279 | 238 | 82.80 |
| 14″ X 6″ | 355.6 | 11.13 (40) | 168.3 | 10.97 (XS/80) | 279 | 238 | 105.00 |
| 14″ X 6″ | 355.6 | 12.7 (XS) | 168.3 | 10.97 (XS/80) | 279 | 238 | 103.80 |
| 14″ X 6″ | 355.6 | 15.09 (60) | 168.3 | 14.27 (120) | 279 | 238 | 105.00 |
| 14″ X 6″ | 355.6 | 19.05 (80) | 168.3 | 18.26 (160) | 279 | 238 | 162.00 |
| 14″ X 8″ | 355.6 | 7.92 (20) | 219.1 | 6.35 (20) | 279 | 248 | 80.60 |
| 14″ X 8″ | 355.6 | 9.53 (STD/30) | 219.1 | 8.18 (STD/40) | 279 | 248 | 82.80 |
| 14″ X 8″ | 355.6 | 11.13 (40) | 219.1 | 8.18 (STD/40) | 279 | 248 | 100.00 |
| 14″ X 8″ | 355.6 | 12.7 (XS) | 219.1 | 12.7 (XS/80) | 279 | 248 | 108.90 |
| 14″ X 8″ | 355.6 | 15.09 (60) | 219.1 | 10.31 (60) | 279 | 248 | 127.10 |
| 14″ X 8″ | 355.6 | 19.05 (80) | 219.1 | 18.26 (120) | 279 | 248 | 162.30 |
| 14″ X 8″ | 355.6 | 23.83 (100) | 219.1 | 20.62 (140) | 279 | 248 | 206.00 |
| 14″ X 8″ | 355.6 | 27.79 (120) | 219.1 | 23.01 (160) | 279 | 248 | 235.00 |
| 14″ X 10″ | 355.6 | 7.92 (20) | 273 | 6.35 (20) | 279 | 257 | 80.60 |
| 14″ X 10″ | 355.6 | 9.53 (STD/30) | 273 | 9.27 (STD/40) | 279 | 257 | 85.00 |
| 14″ X 10″ | 355.6 | 11.13 (40) | 273 | 9.27 (STD/40) | 279 | 257 | 100.00 |
| 14″ X 10″ | 355.6 | 12.7 (XS) | 273 | 12.7 (XS/60) | 279 | 257 | 108.99 |
| 14″ X 10″ | 355.6 | 15.09 (60) | 273 | 12.7 (XS/60) | 279 | 257 | 127.10 |
| 14″ X 10″ | 355.6 | 19.05 (80) | 273 | 15.09 (80) | 279 | 257 | 160.00 |
| 14″ X 10″ | 355.6 | 23.83 (100) | 273 | 18.26 (100) | 279 | 257 | 206.00 |
| 14″ X 10″ | 355.6 | 27.79 (120) | 273 | 21.44 (120) | 279 | 257 | 220.00 |
| 14″ X 10″ | 355.6 | 31.75 (140) | 273 | 25.4 (XXS/140) | 279 | 257 | 245.00 |
| 14″ X 10″ | 355.6 | 35.71 (160) | 273 | 28.58 (160) | 279 | 257 | 265.00 |
| 14″ X 12″ | 355.6 | 7.92 (20) | 323.8 | 6.35 (20) | 279 | 270 | 80.60 |
| 14″ X 12″ | 355.6 | 9.53 (STD/30) | 323.8 | 9.53 (STD) | 279 | 270 | 85.00 |
| 14″ X 12″ | 355.6 | 11.13 (40) | 323.8 | 10.31 (40) | 279 | 270 | 105.00 |
| 14″ X 12″ | 355.6 | 12.7 (XS) | 323.8 | 12.7 (XS) | 279 | 270 | 108.90 |
| 14″ X 12″ | 355.6 | 15.09 (60) | 323.8 | 14.27 (60) | 279 | 270 | 135.00 |
| 14″ X 12″ | 355.6 | 19.05 (80) | 323.8 | 17.48 (80) | 279 | 270 | 162.30 |
| 14″ X 12″ | 355.6 | 23.83 (100) | 323.8 | 21.44 (100) | 279 | 270 | 206.00 |
| 14″ X 12″ | 355.6 | 27.79 (120) | 323.8 | 25.4 (XXS/120) | 279 | 270 | 235.00 |
| 14″ X 12″ | 355.6 | 31.75 (140) | 323.8 | 28.58 (140) | 279 | 270 | 255.00 |
| 14″ X 12″ | 355.6 | 35.71 (160) | 323.8 | 33.32 (160) | 279 | 270 | 270.00 |
| 14″ X 14″ | 355.6 | 7.92 (20) | 355.6 | 7.92 (20) | 279 | 279 | 80.60 |
| 14″ X 14″ | 355.6 | 9.53 (STD/30) | 355.6 | 9.53 (STD/30) | 279 | 279 | 85.00 |
| 14″ X 14″ | 355.6 | 11.13 (40) | 355.6 | 11.13 (40) | 279 | 279 | 105.00 |
| 14″ X 14″ | 355.6 | 12.7 (XS) | 355.6 | 12.7 (XS) | 279 | 279 | 108.90 |
| 14″ X 14″ | 355.6 | 15.09 (60) | 355.6 | 15.09 (60) | 279 | 279 | 135.00 |
| 14″ X 14″ | 355.6 | 19.05 (80) | 355.6 | 19.05 (80) | 279 | 279 | 162.30 |
| 14″ X 14″ | 355.6 | 23.83 (100) | 355.6 | 23.83 (100) | 279 | 279 | 206.00 |
| 14″ X 14″ | 355.6 | 27.79 (120) | 355.6 | 27.79 (120) | 279 | 279 | 235.00 |
| 14″ X 14″ | 355.6 | 31.75 (140) | 355.6 | 31.75 (140) | 279 | 279 | 255.00 |
| 14″ X 14″ | 355.6 | 35.71 (160) | 355.6 | 35.71 (160) | 279 | 279 | 270.00 |
| 16″ X 5″ | 406.4 | 7.92 (20) | 141.3 | 6.55 (STD/40) | 305 | 264 | 90.33 |
| 16″ X 5″ | 406.4 | 9.53 (STD/30) | 141.3 | 6.55 (STD/40) | 305 | 264 | 95.94 |
| 16″ X 5″ | 406.4 | 12.7 (XS/40) | 141.3 | 9.53 (XS/80) | 305 | 264 | 130.50 |
| 16″ X 5″ | 406.4 | 16.66 (60) | 141.3 | 12.7 (120) | 305 | 264 | 161.27 |
| 16″ X 5″ | 406.4 | 21.44 (80) | 141.3 | 15.88 (160) | 305 | 264 | 181.60 |
| 16″ X 6″ | 406.4 | 7.92 (20) | 168.3 | 7.11 (STD/40) | 305 | 264 | 90.33 |
| 16″ X 6″ | 406.4 | 9.53 (STD/30) | 168.3 | 7.11 (STD/40) | 305 | 264 | 95.94 |
| 16″ X 6″ | 406.4 | 12.7 (XS/40) | 168.3 | 10.97 (XS/80) | 305 | 264 | 130.50 |
| 16″ X 6″ | 406.4 | 16.66 (60) | 168.3 | 14.27 (120) | 305 | 264 | 161.27 |
| 16″ X 6″ | 406.4 | 21.44 (80) | 168.3 | 18.26 (160) | 305 | 264 | 181.60 |
| 16″ X 8″ | 406.4 | 7.92 (20) | 219.1 | 6.35 (20) | 305 | 273 | 90.33 |
| 16″ X 8″ | 406.4 | 9.53 (STD/30) | 219.1 | 8.18 (STD/40) | 305 | 273 | 95.94 |
| 16″ X 8″ | 406.4 | 12.7 (XS/40) | 219.1 | 12.7 (XS/80) | 305 | 273 | 138.50 |
| 16″ X 8″ | 406.4 | 16.66 (60) | 219.1 | 15.09 (100) | 305 | 273 | 161.27 |
| 16″ X 8″ | 406.4 | 21.44 (80) | 219.1 | 18.26 (120) | 305 | 273 | 181.60 |
| 16″ X 8″ | 406.4 | 26.19 (100) | 219.1 | 22.23 (XXS) | 305 | 273 | 258.20 |
| 16″ X 8″ | 406.4 | 30.96 (120) | 219.1 | 23.01 (160) | 305 | 273 | 255.35 |
| 16″ X 10″ | 406.4 | 7.92 (20) | 273 | 6.35 (20) | 305 | 283 | 90.33 |
| 16″ X 10″ | 406.4 | 9.53 (STD/30) | 273 | 9.27 (STD/40) | 305 | 283 | 95.94 |
| 16″ X 10″ | 406.4 | 12.7 (XS/40) | 273 | 12.7 (XS/60) | 305 | 283 | 138.50 |
| 16″ X 10″ | 406.4 | 16.66 (60) | 273 | 15.09 (80) | 305 | 283 | 161.27 |
| 16″ X 10″ | 406.4 | 21.44 (80) | 273 | 18.26 (100) | 305 | 283 | 181.60 |
| 16″ X 10″ | 406.4 | 26.19 (100) | 273 | 25.4 (XXS/140) | 305 | 283 | 270.60 |
| 16″ X 10″ | 406.4 | 30.96 (120) | 273 | 28.58 (160) | 305 | 283 | 255.35 |
| 16″ X 12″ | 406.4 | 7.92 (20 | 323.8 | 6.35 (20 | 305 | 295 | 90.33 |
| 16″ X 12″ | 406.4 | 9.53 (STD/30) | 323.8 | 9.53 (STD) | 305 | 295 | 102.34 |
| 16″ X 12″ | 406.4 | 12.7 (XS/40) | 323.8 | 12.7 (XS) | 305 | 295 | 138.50 |
| 16″ X 12″ | 406.4 | 16.66 (60) | 323.8 | 14.27 (60) | 305 | 295 | 161.27 |
| 16″ X 12″ | 406.4 | 21.44 (80) | 323.8 | 17.48 (80) | 305 | 295 | 181.60 |
| 16″ X 12″ | 406.4 | 26.19 (100) | 323.8 | 21.44 (100) | 305 | 295 | 258.20 |
| 16″ X 12″ | 406.4 | 30.96 (120) | 323.8 | 25.4 (XXS/120) | 305 | 295 | 255.35 |
| 16″ X 12″ | 406.4 | 36.53 (140) | 323.8 | 28.58 (140) | 305 | 295 | 309.31 |
| 16″ X 12″ | 406.4 | 40.49 (160) | 323.8 | 33.32 (160) | 305 | 295 | 340.00 |
| 16″ X 14″ | 406.4 | 7.92 (20) | 355.6 | 7.92 (20) | 305 | 305 | 90.33 |
| 16″ X 14″ | 406.4 | 9.53 (STD/30) | 355.6 | 9.53 (STD/30) | 305 | 305 | 102.34 |
| 16″ X 14″ | 406.4 | 12.7 (XS/40) | 355.6 | 12.7 (XS) | 305 | 305 | 138.50 |
| 16″ X 14″ | 406.4 | 16.66 (60) | 355.6 | 15.09 (80) | 305 | 305 | 161.27 |
| 16″ X 14″ | 406.4 | 21.44 (80) | 355.6 | 19.05 (80) | 305 | 305 | 195.00 |
| 16″ X 14″ | 406.4 | 26.19 (100) | 355.6 | 23.83 (100) | 305 | 305 | 222.07 |
| 16″ X 14″ | 406.4 | 30.96 (120) | 355.6 | 27.79 (120) | 305 | 305 | 255.35 |
| 16″ X 14″ | 406.4 | 36.53 (140) | 355.6 | 31.75 (140) | 305 | 305 | 309.31 |
| 16″ X 14″ | 406.4 | 40.49 (160) | 355.6 | 35.71 (160) | 305 | 305 | 344.26 |
| 16″ X 16″ | 406.4 | 7.92 (20) | 406.4 | 7.92 (20) | 305 | 305 | 90.33 |
| 16″ X 16″ | 406.4 | 9.53 (STD/30) | 406.4 | 9.53 (STD/30) | 305 | 305 | 102.34 |
| 16″ X 16″ | 406.4 | 12.7 (XS/40) | 406.4 | 12.7 (XS/40) | 305 | 305 | 138.50 |
| 16″ X 16″ | 406.4 | 16.66 (60) | 406.4 | 16.66 (60) | 305 | 305 | 161.27 |
| 16″ X 16″ | 406.4 | 21.44 (80) | 406.4 | 21.44 (80) | 305 | 305 | 195.00 |
| 16″ X 16″ | 406.4 | 26.19 (100) | 406.4 | 26.19 (100) | 305 | 305 | 222.07 |
| 16″ X 16″ | 406.4 | 30.96 (120) | 406.4 | 30.96 (120) | 305 | 305 | 255.35 |
| 16″ X 16″ | 406.4 | 36.53 (140) | 406.4 | 36.53 (140) | 305 | 305 | 309.31 |
| 16″ X 16″ | 406.4 | 40.49 (160) | 406.4 | 40.49 (160) | 305 | 305 | 344.26 |
| 18″ X 6″ | 457 | 7.92 (20) | 168.3 | 7.11 (STD/40) | 343 | 298 | 100.00 |
| 18″ X 6″ | 457 | 9.53 (STD) | 168.3 | 7.11 (STD/40) | 343 | 298 | 100.00 |
| 18″ X 6″ | 457 | 11.13 (30) | 168.3 | 10.97 (XS/80) | 343 | 298 | 133.40 |
| 18″ X 6″ | 457 | 12.7 (XS) | 168.3 | 10.97 (XS/80) | 343 | 298 | 133.40 |
| 18″ X 6″ | 457 | 14.27 (40) | 168.3 | 14.27 (120) | 343 | 298 | 158.26 |
| 18″ X 6″ | 457 | 19.05 (60) | 168.3 | 18.26 (160) | 343 | 298 | 196.36 |
| 18″ X 8″ | 457 | 7.92 (20) | 219.1 | 6.35 (20) | 343 | 298 | 100.00 |
| 18″ X 8″ | 457 | 9.53 (STD) | 219.1 | 8.18 (STD/40) | 343 | 298 | 100.00 |
| 18″ X 8″ | 457 | 11.13 (30) | 219.1 | 7.04 (30) | 343 | 298 | 100.00 |
| 18″ X 8″ | 457 | 12.7 (XS) | 219.1 | 12.7 (XS/80) | 343 | 298 | 148.64 |
| 18″ X 8″ | 457 | 14.27 (40) | 219.1 | 12.7 (XS/80) | 343 | 298 | 148.64 |
| 18″ X 8″ | 457 | 19.05 (60) | 219.1 | 18.26 (120) | 343 | 298 | 196.36 |
| 18″ X 8″ | 457 | 23.83 (80) | 219.1 | 22.23 (XS) | 343 | 298 | 243.17 |
| 18″ X 10″ | 457 | 7.92 (20) | 273 | 6.35 (20) | 343 | 308 | 100.00 |
| 18″ X 10″ | 457 | 9.53 (STD) | 273 | 9.27 (STD/40) | 343 | 308 | 100.00 |
| 18″ X 10″ | 457 | 11.13 (30) | 273 | 9.27 (STD/40) | 343 | 308 | 124.44 |
| 18″ X 10″ | 457 | 12.7 (XS) | 273 | 12.7 (XS/60) | 343 | 308 | 148.64 |
| 18″ X 10″ | 457 | 14.27 (40) | 273 | 12.7 (XS/60) | 343 | 308 | 148.64 |
| 18″ X 10″ | 457 | 19.05 (60) | 273 | 18.26 (100) | 343 | 308 | 196.36 |
| 18″ X 10″ | 457 | 23.83 (80) | 273 | 21.44 (120) | 343 | 308 | 243.17 |
| 18″ X 12″ | 457 | 7.92 (20) | 323.8 | 6.35 (20) | 343 | 321 | 100.00 |
| 18″ X 12″ | 457 | 9.53 (STD) | 323.8 | 9.53 (STD) | 343 | 321 | 124.44 |
| 18″ X 12″ | 457 | 11.13 (30) | 323.8 | 10.31 (40) | 343 | 321 | 124.44 |
| 18″ X 12″ | 457 | 12.7 (XS) | 323.8 | 12.7 (XS) | 343 | 321 | 148.64 |
| 18″ X 12″ | 457 | 14.27 (40) | 323.8 | 14.27 (60) | 343 | 321 | 158.26 |
| 18″ X 12″ | 457 | 19.05 (60) | 323.8 | 17.48 (80) | 343 | 321 | 196.36 |
| 18″ X 12″ | 457 | 23.83 (80) | 323.8 | 21.44 (100) | 343 | 321 | 243.17 |
| 18″ X 12″ | 457 | 29.36 (100) | 323.8 | 25.4 (XXS/120) | 343 | 321 | 289.00 |
| 18″ X 14″ | 457 | 9.53 (STD) | 355.6 | 9.53 (STD) | 343 | 330 | 124.44 |
| 18″ X 14″ | 457 | 11.13 (30) | 355.6 | 11.13 (40) | 343 | 330 | 124.44 |
| 18″ X 14″ | 457 | 12.7 (XS) | 355.6 | 12.7 (XS) | 343 | 330 | 148.64 |
| 18″ X 14″ | 457 | 14.27 (40) | 355.6 | 12.7 (XS) | 343 | 330 | 148.64 |
| 18″ X 14″ | 457 | 19.05 (60) | 355.6 | 15.09 (60) | 343 | 330 | 196.36 |
| 18″ X 14″ | 457 | 23.83 (80) | 355.6 | 19.05 (80) | 343 | 330 | 217.00 |
| 18″ X 14″ | 457 | 29.36 (100) | 355.6 | 27.79 (120) | 343 | 330 | 289.00 |
| 18″ X 16″ | 457 | 7.92 (20) | 406.4 | 7.92 (20) | 343 | 330 | 100.00 |
| 18″ X 16″ | 457 | 9.53 (STD) | 406.4 | 9.53 (STD/30) | 343 | 330 | 124.44 |
| 18″ X 16″ | 457 | 11.13 (30) | 406.4 | 9.53 (STD/30) | 343 | 330 | 124.44 |
| 18″ X 16″ | 457 | 12.7 (XS) | 406.4 | 12.7 (XS/40) | 343 | 330 | 148.64 |
| 18″ X 16″ | 457 | 14.27 (40) | 406.4 | 12.7 (XS/40) | 343 | 330 | 148.64 |
| 18″ X 16″ | 457 | 19.05 (60) | 406.4 | 16.66 (60) | 343 | 330 | 196.36 |
| 18″ X 16″ | 457 | 23.83 (80) | 406.4 | 21.44 (80) | 343 | 330 | 243.17 |
| 18″ X 16″ | 457 | 29.36 (100) | 406.4 | 26.19 (100) | 343 | 330 | 289.00 |
| 18″ X 16″ | 457 | 34.93 (120) | 406.4 | 30.96 (120) | 343 | 330 | 342.94 |
| 18″ X 18″ | 457 | 7.92 (20) | 457 | 7.92 (20) | 343 | 343 | 100.00 |
| 18″ X 18″ | 457 | 9.53 (STD) | 457 | 9.53 (STD) | 343 | 343 | 124.44 |
| 18″ X 18″ | 457 | 11.13 (30) | 457 | 11.13 (30) | 343 | 343 | 124.44 |
| 18″ X 18″ | 457 | 12.7 (XS) | 457 | 12.7 (XS) | 343 | 343 | 148.64 |
| 18″ X 18″ | 457 | 14.27 (40) | 457 | 14.27 (40) | 343 | 343 | 158.26 |
| 18″ X 18″ | 457 | 19.05 (60) | 457 | 19.05 (60) | 343 | 343 | 217.00 |
| 18″ X 18″ | 457 | 23.83 (80) | 457 | 23.83 (80) | 343 | 343 | 243.17 |
| 18″ X 18″ | 457 | 29.36 (100) | 457 | 29.36 (100) | 343 | 343 | 307.18 |
| 18″ X 18″ | 457 | 34.93 (120) | 457 | 34.93 (120) | 343 | 343 | 378.13 |
| 18″ X 18″ | 457 | 39.67 (140) | 457 | 39.67 (140) | 343 | 343 | 421.29 |
| 20″ X 8″ | 508 | 9.53 (STD/20) | 219.1 | 8.18 (STD/40) | 381 | 324 | 170.60 |
| 20″ X 8″ | 508 | 12.7 (XS / 30) | 219.1 | 12.7 (XS / 80) | 381 | 324 | 193.70 |
| 20″ X 8″ | 508 | 15.09 (40) | 219.1 | 12.7 (XS / 80) | 381 | 324 | 193.70 |
| 20″ X 8″ | 508 | 20.62 (60) | 219.1 | 18.26 (120) | 381 | 324 | 251.53 |
| 20″ X 8″ | 508 | 26.19 (80) | 219.1 | 23.01 (160) | 381 | 324 | 363.56 |
| 20″ X 10″ | 508 | 9.53 (STD/20) | 273 | 9.27 (STD/40) | 381 | 333 | 170.60 |
| 20″ X 10″ | 508 | 12.7 (XS / 30) | 273 | 12.7 (XS / 60) | 381 | 333 | 193.70 |
| 20″ X 10″ | 508 | 15.09 (40) | 273 | 15.09 (80) | 381 | 333 | 222.24 |
| 20″ X 10″ | 508 | 20.62 (60) | 273 | 18.26 (100) | 381 | 333 | 251.53 |
| 20″ X 10″ | 508 | 26.19 (80) | 273 | 25.4 (XXS/140) | 381 | 333 | 363.56 |
| 20″ X 12″ | 508 | 9.53 (STD/20) | 323.8 | 9.53 (STD) | 381 | 346 | 170.60 |
| 20″ X 12″ | 508 | 12.7 (XS / 30) | 323.8 | 12.7 (XS ) | 381 | 346 | 193.70 |
| 20″ X 12″ | 508 | 15.09 (40) | 323.8 | 14.27 (60) | 381 | 346 | 222.24 |
| 20″ X 12″ | 508 | 20.62 (60) | 323.8 | 17.48 (80) | 381 | 346 | 251.53 |
| 20″ X 12″ | 508 | 26.19 (80) | 323.8 | 25.4 (XXS/120) | 381 | 346 | 363.56 |
| 20″ X 12″ | 508 | 32.54 (100) | 323.8 | 28.58 (100) | 381 | 346 | 432.97 |
| 20″ X 14″ | 508 | 9.53 (STD/20) | 355.6 | 9.53 (STD/30) | 381 | 356 | 170.60 |
| 20″ X 14″ | 508 | 12.7 (XS / 30) | 355.6 | 12.7 (XS) | 381 | 356 | 193.70 |
| 20″ X 16″ | 508 | 9.53 (STD/20) | 406.4 | 9.53 (STD/30) | 381 | 356 | 170.60 |
| 20″ X 16″ | 508 | 12.7 (XS / 30) | 406.4 | 12.7 (XS / 40) | 381 | 356 | 193.70 |
| 20″ X 16″ | 508 | 15.09 (40) | 406.4 | 12.7 (XS / 40) | 381 | 356 | 193.70 |
| 20″ X 16″ | 508 | 20.62 (60) | 406.4 | 16.66 (60) | 381 | 356 | 276.10 |
| 20″ X 16″ | 508 | 26.19 (80) | 406.4 | 21.44 (80) | 381 | 356 | 363.56 |
| 20″ X 16″ | 508 | 32.54 (100) | 406.4 | 30.96 (120) | 381 | 356 | 432.97 |
| 20″ X 18″ | 508 | 9.53 (STD/20) | 457 | 9.53 (STD) | 381 | 368 | 170.60 |
| 20″ X 18″ | 508 | 12.7 (XS / 30) | 457 | 12.7 (XS) | 381 | 368 | 193.70 |
| 20″ X 18″ | 508 | 15.09 (40) | 457 | 14.27 (40) | 381 | 368 | 222.24 |
| 20″ X 18″ | 508 | 20.62 (60) | 457 | 19.5 (60) | 381 | 368 | 276.10 |
| 20″ X 18″ | 508 | 26.19 (80) | 457 | 23.83 (80) | 381 | 368 | 363.56 |
| 20″ X 18″ | 508 | 32.54 (100) | 457 | 29.36 (100) | 381 | 368 | 432.97 |
| 20″ X 20″ | 508 | 9.53 (STD/20) | 508 | 9.53 (STD/20) | 381 | 381 | 170.60 |
| 20″ X 20″ | 508 | 12.7 (XS / 30) | 508 | 12.7 (XS / 30) | 381 | 381 | 193.70 |
| 20″ X 20″ | 508 | 15.09 (40) | 508 | 15.09 (40) | 381 | 381 | 222.24 |
| 20″ X 20″ | 508 | 20.62 (60) | 508 | 20.62 (60) | 381 | 381 | 276.10 |
| 20″ X 20″ | 508 | 26.19 (80) | 508 | 26.19 (80) | 381 | 381 | 363.56 |
| 20″ X 20″ | 508 | 32.54 (100) | 508 | 32.54 (100) | 381 | 381 | 432.97 |
| 20″ X 20″ | 508 | 38.1 (120) | 508 | 38.1 (120) | 381 | 381 | 476.69 |
| 20″ X 20″ | 508 | 44.45 (140) | 508 | 44.45 (140) | 381 | 381 | 585.00 |
| 24″ X 10″ | 610 | 9.53 (STD/20) | 273 | 9.27 (STD/20) | 432 | 348 | 208.00 |
| 24″ X 10″ | 610 | 12.7 (XS) | 273 | 12.7 (XS / 60) | 432 | 348 | 239.44 |
| 24″ X 10″ | 610 | 17.48 (40) | 273 | 15.09 (80) | 432 | 348 | 278.35 |
| 24″ X 10″ | 610 | 24.61 (60) | 273 | 21.44 (120) | 432 | 348 | 438.61 |
| 24″ X 10″ | 610 | 30.96 (80) | 273 | 28.58 (160) | 432 | 348 | 468.57 |
| 24″ X 12″ | 610 | 9.53 (STD/20) | 323.8 | 9.53 (STD) | 432 | 397 | 208.00 |
| 24″ X 12″ | 610 | 12.7 (XS) | 323.8 | 12.7 (XS) | 432 | 397 | 239.44 |
| 24″ X 12″ | 610 | 17.48 (40) | 323.8 | 14.27 (60) | 432 | 397 | 278.35 |
| 24″ X 12″ | 610 | 24.61 (60) | 323.8 | 21.44 (100) | 432 | 397 | 438.61 |
| 24″ X 12″ | 610 | 30.96 (80) | 323.8 | 28.58 (140) | 432 | 397 | 468.57 |
| 24″ X 14″ | 610 | 9.53 (STD/20) | 355.6 | 9.53 (STD/30) | 432 | 406 | 208.00 |
| 24″ X 14″ | 610 | 12.7 (XS) | 355.6 | 12.7 (XS) | 432 | 406 | 239.44 |
| 24″ X 14″ | 610 | 14.27 (30) | 355.6 | 12.7 (XS) | 432 | 406 | 239.44 |
| 24″ X 14″ | 610 | 17.48 (40) | 355.6 | 15.09 (60) | 432 | 406 | 278.35 |
| 24″ X 14″ | 610 | 24.61 (60) | 355.6 | 23.83 (100) | 432 | 406 | 438.61 |
| 24″ X 14″ | 610 | 30.96 (80) | 355.6 | 27.79 (120) | 432 | 406 | 468.57 |
| 24″ X 16″ | 610 | 9.53 (STD/20) | 406.4 | 9.53 (STD/30) | 432 | 406 | 208.00 |
| 24″ X 16″ | 610 | 12.7 (XS) | 406.4 | 12.7 (XS / 40) | 432 | 406 | 239.44 |
| 24″ X 16″ | 610 | 14.27 (30) | 406.4 | 12.7 (XS / 40) | 432 | 406 | 239.44 |
| 24″ X 16″ | 610 | 17.48 (40) | 406.4 | 16.66 (60) | 432 | 406 | 278.35 |
| 24″ X 16″ | 610 | 24.61 (60) | 406.4 | 21.88 (80) | 432 | 406 | 438.61 |
| 24″ X 16″ | 610 | 30.96 (80) | 406.4 | 26.19 (100) | 432 | 406 | 468.57 |
| 24″ X 18″ | 610 | 9.53 (STD/20) | 457 | 9.53 (STD) | 432 | 416 | 208.00 |
| 24″ X 18″ | 610 | 12.7 (XS) | 457 | 12.7 (XS) | 432 | 416 | 255.80 |
| 24″ X 18″ | 610 | 14.27 (30) | 457 | 11.13 (30) | 432 | 416 | 239.44 |
| 24″ X 18″ | 610 | 17.48 (40) | 457 | 14.27 (40) | 432 | 416 | 278.35 |
| 24″ X 18″ | 610 | 24.61 (60) | 457 | 23.83 (80) | 432 | 416 | 438.61 |
| 24″ X 18″ | 610 | 30.96 (80) | 457 | 29.36 (100) | 432 | 416 | 542.65 |
| 24″ X 20″ | 610 | 9.53 (STD/20) | 508 | 9.53 (STD/20) | 432 | 432 | 208.00 |
| 24″ X 20″ | 610 | 12.7 (XS) | 508 | 12.7 (XS / 30) | 432 | 432 | 239.44 |
| 24″ X 20″ | 610 | 14.27 (30) | 508 | 12.7 (XS / 30) | 432 | 432 | 239.44 |
| 24″ X 20″ | 610 | 17.48 (40) | 508 | 15.09 (40) | 432 | 432 | 278.35 |
| 24″ X 20″ | 610 | 24.61 (60) | 508 | 20.62 (60) | 432 | 432 | 393.34 |
| 24″ X 20″ | 610 | 30.96 (80) | 610 | 26.19 (80) | 432 | 432 | 606.10 |
| 24″ X 24″ | 610 | 9.53 (STD/20) | 610 | 9.53 (STD/20) | 432 | 432 | 208.00 |
| 24″ X 24″ | 610 | 12.7 (XS) | 610 | 12.7 (XS) | 432 | 432 | 239.44 |
| 24″ X 24″ | 610 | 14.27 (30) | 610 | 14.27 (30) | 432 | 432 | 227.06 |
| 24″ X 24″ | 610 | 17.48 (40) | 610 | 17.48 (40) | 432 | 432 | 320.16 |
| 24″ X 24″ | 610 | 24.61 (60) | 610 | 24.61 (60) | 432 | 432 | 438.61 |
| 24″ X 24″ | 610 | 30.96 (80) | 610 | 30.96 (80) | 432 | 432 | 542.65 |
| 24″ X 24″ | 610 | 38.89 (100) | 610 | 38.89 (100) | 432 | 432 | 687.00 |
| 24″ X 24″ | 610 | 46.02 (120) | 610 | 46.02 (120) | 432 | 432 | 758.00 |
نقد و بررسیها
هنوز بررسیای ثبت نشده است.
